Volcon and Wuxi Solartale successfully launched a photovoltaic storage integrated project

Volcon and Wuxi Solartale successfully launched a photovoltaic storage integrated project

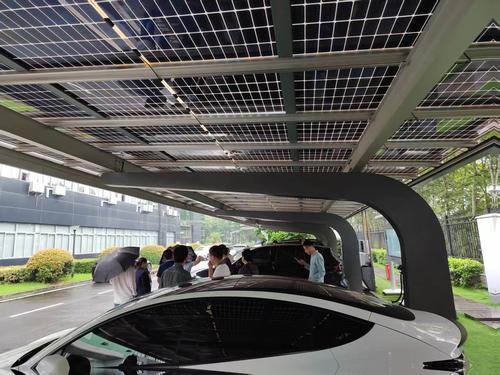

Oct 22, 2025,‍ The photovoltaic storage integrated project in Vulkan has officially started operation. The entire system is equipped with an advanced photovoltaic and energy storage system. EMS Management system, providing intelligent energy solutions for commercial users.

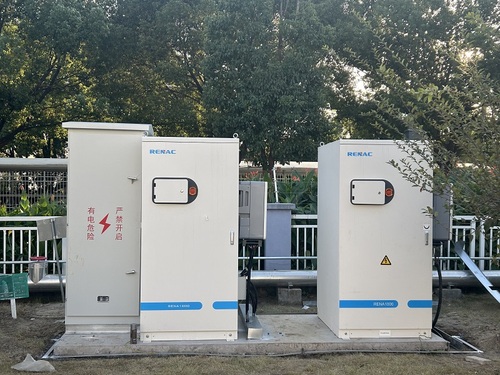

The light storage cabinet used in this project is based on the mature RENA1000. The series of technology platforms have the following outstanding features:

Ultimate security

- Battery cells,Pack And integrated cabinet fire protection level 3

- IP55 Outdoor protection level

- Battery life cycle management

- Smart Battery pack Temperature management

Excellent performance

- High cycle life:6000 Second-rate@90%DOD/25℃/0.5C

- Battery pack Automatic optimization and balancing

- High precision SOX Algorithm to ensure optimal battery working state

- Charge and discharge rate ≤0.5C, the discharge depth reaches 95%

System configuration details

Photovoltaic power generation system

- Total installed capacity: 180KWp Photovoltaic array

- use308 piece Efficient monocrystal 600w Photovoltaic panels, maximizing power generation efficiency

Energy storage system core parameters

- Two 50-110KWH Light storage cabinet

- Battery capacity: 104.4kWh

- Rated voltage: 512V (Voltage range 448-584V）

- Cell Type: LF100LA/102Ah

- Battery structure: 16S2P*10

Intelligent management system

- Solar storage system EMS Management system realizes intelligent control

- Flexible switching between on-grid and off-grid to support microgrid operation

- Real-time remote control and program updates (OOTD)

- Smart operation and maintenance, unattended turnkey solution

The successful implementation of this project fully demonstrates the technical advantages of DC coupling technology in the application of photovoltaic storage integration.The EMS   management system enables intelligent scheduling and optimized management of energy. This collaboration between Vulcon and Wuxi Solartale provides an important technical practice case for the

industry and holds significant industry reference value.
